    22-Inch 1080p Surveillance Monitor with BNC
    SC-22E

    • Full HD 1920 x 1080 resolution
    • Versatile connectivity: VGA, HDMI, Composite (BNC), and dual 2W speakers
    • Composite (BNC) passive loop-through output port
    • CCTV picture mode for maximum image detail and clarity in low light footage
    • Designed and developed for continuous 24/7 operation
    SC-19E surveillance monitor product icons

    The SC-22E 22-inch surveillance monitor with BNC connectivity is designed for 24/7 operation,  featuring Anti-Burn-in™ technology to prevent LCD burn-in effect from long-hour monitoring. The monitor also includes video enhancement controls such as gamma curve selection, black-level adjustment, and CCTV mode that help create richer images even under unfavourable lighting conditions from low light security video footage.

    Support Analogue CCTV Camera Systems

    The monitor supports analogue and digital video inputs. Its BNC in/out ports enables video looping of security camera signals and DVRs.

    SC-22E surveillance monitor supports analogue CCTV camera systems

    Selectable Gamma Settings Improve Image Quality

    The SC-22E can capture darker details and enhance image quality with selectable gamma curves, which improve the light, shadows, and colour balance of security camera footage.

    AG Neovo SC-22E security monitor with selectable gamma settings improves image clarity

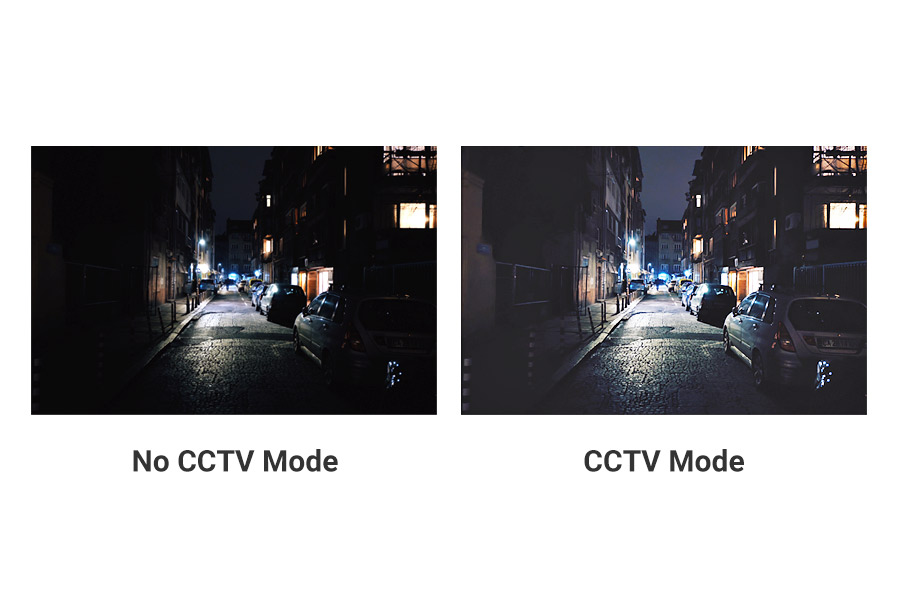

    CCTV Mode Maximise Video Camera Images

    A pre-configured CCTV mode provides to adjust the display’s video settings such as sharpness, colour temperature, and brightness to maximise image clarity, especially in low light surveillance footage at night.

    AG Neovo SC-22E security Monitor equips CCTV Mode

    Not Missing Details In Dark Scenes

    Black-level adjustment allows displaying more details in dark images.

    SC-22E surveillance monitor with black-level adjustment settings provides more details in dark images

    LCD Screen Burn In Prevention

    AG Neovo’s patented Anti-Burn-in technology tackles LCD burn-in effect, prevents a ghost image on the screen. It assures an extended lifespan for the security monitors and secures the user’s investment.

    SC-22E surveillance monitor is designed with LCD screen burn in prevention

    Continuous 24/7 Operation

    Using a commercial-grade panel and Anti-Burn-in technology preventing screen burn-in, this 22-inch surveillance monitor supports 24/7 continuous operation in control centres.

    The SC-22E surveillance monitor Uses a commercial-grade panel for continuous 24/7 operation
