NeoV™ Optical Glass Screen
Anti-Burn-in™ Technology
Clarity, Control, and Confidence for Mission-Critical Monitoring

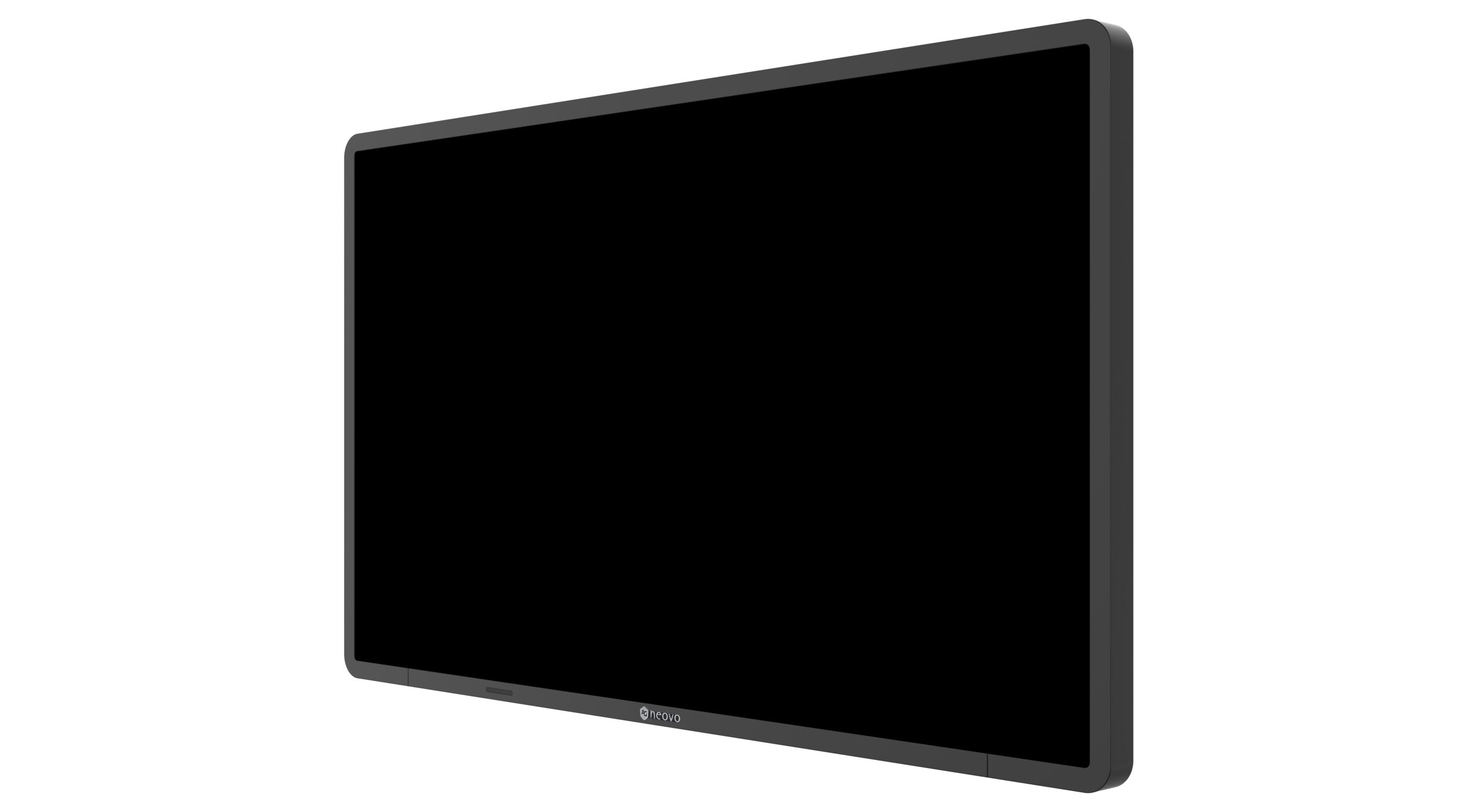

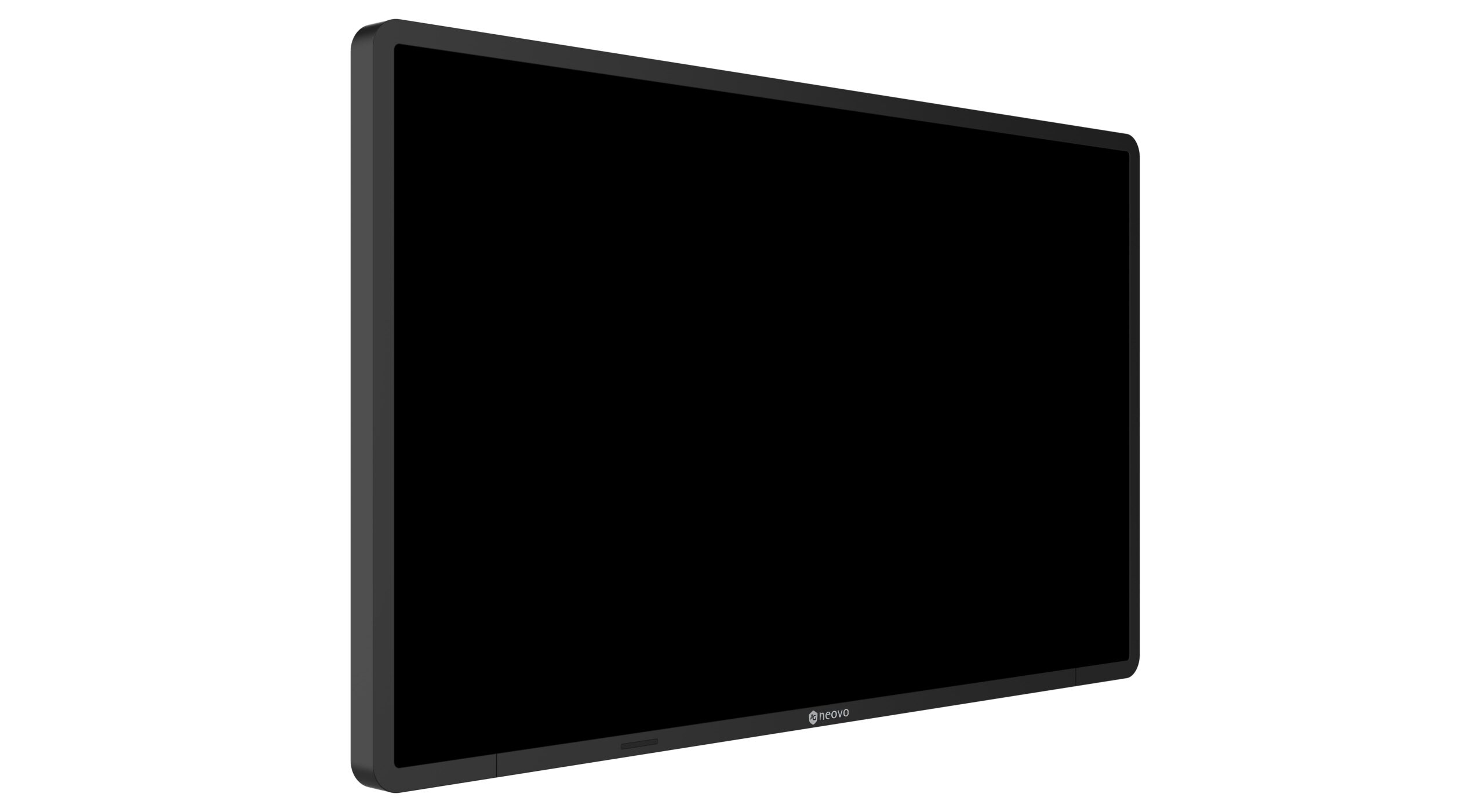

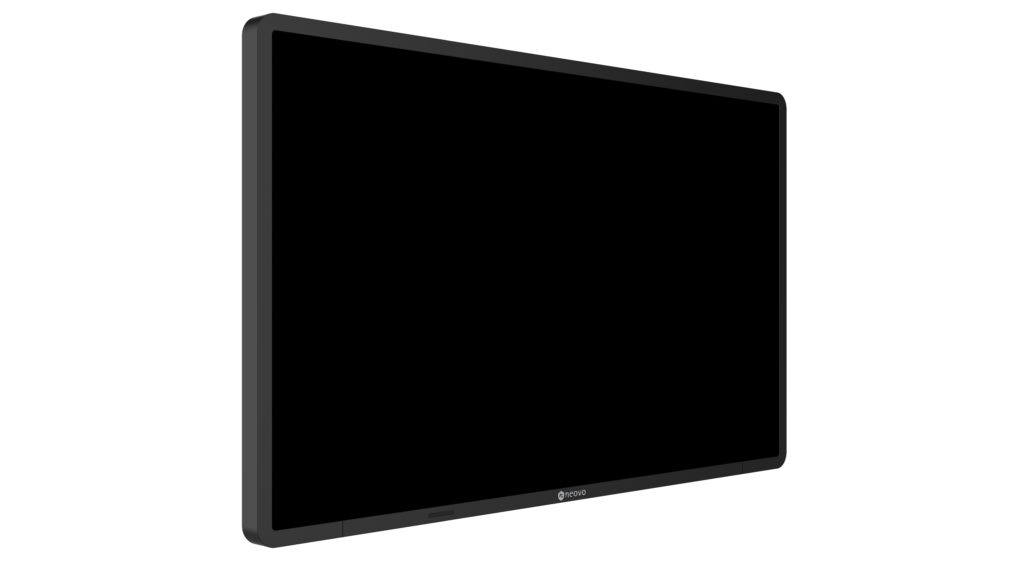

The AG Neovo QX2702 is a 27-inch 4K display purpose-built for environments where precision, control, and uptime are paramount. With 4× HDMI and DP inputs along with native quad-view capabilities, it allows operators to monitor up to four video sources simultaneously, eliminating the need for external switchers. The display supports remote management via RS232 and LAN, enabling seamless integration into control room systems. Combined with blackout mode for low-light conditions, industrial-grade durability, and optional custom keypad shortcuts, the QX2702 empowers system integrators to simplify installations while ensuring long-term operational stability.

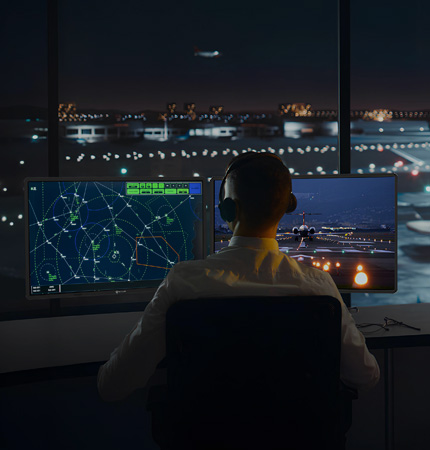

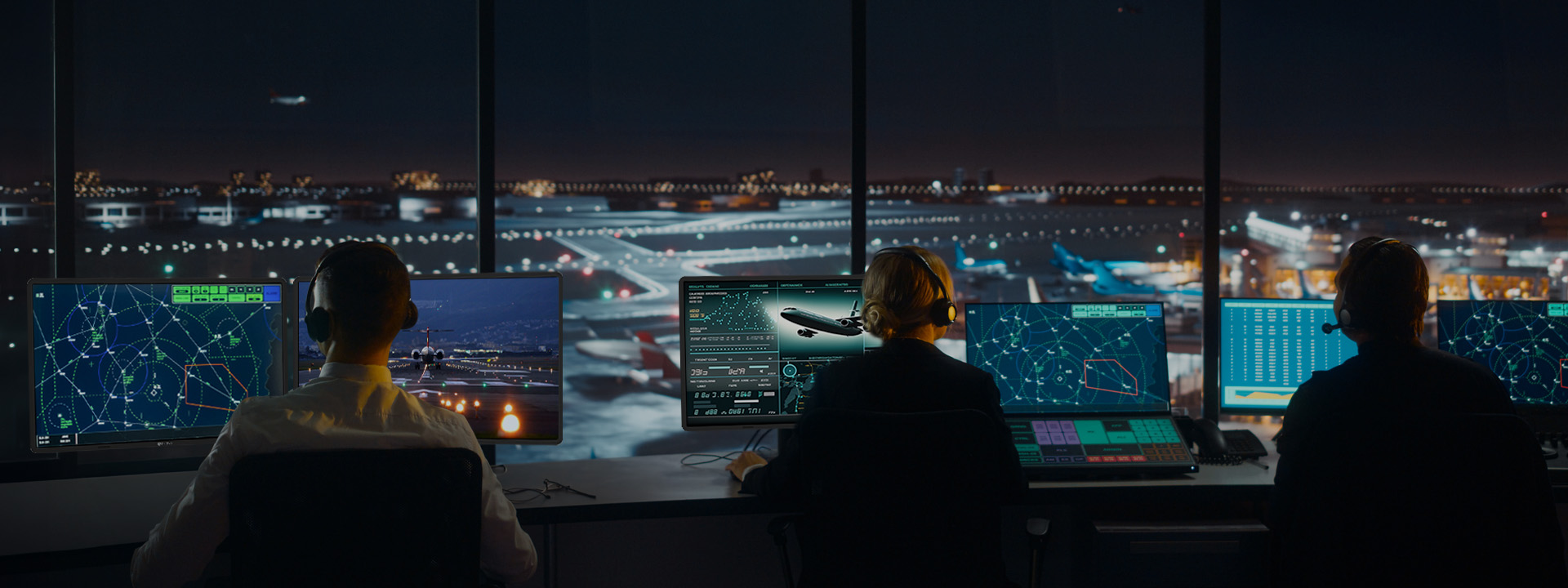

Adaptive Viewing for Every Scenario

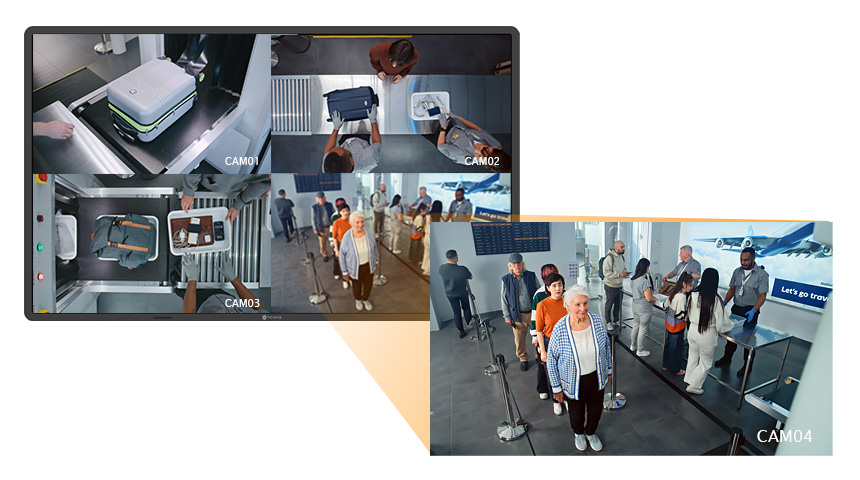

Native 4K Display for Detailed Multi-Source Monitoring
The QX Series features native 4K UHD resolution (3840 × 2160), delivering exceptional image clarity and detail. Each input port supports 4K signal sources, allowing multiple feeds to be displayed simultaneously with sharp, accurate visuals. Ideal for monitoring security footage, data dashboards, and real-time operations where clarity is critical.

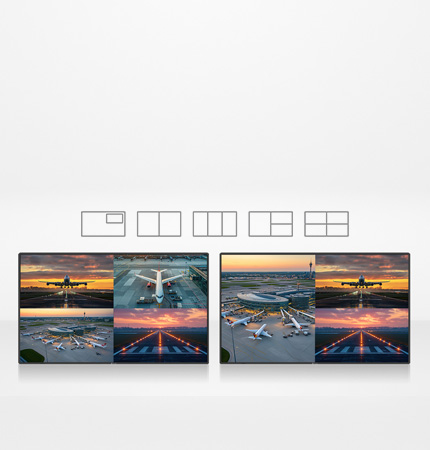

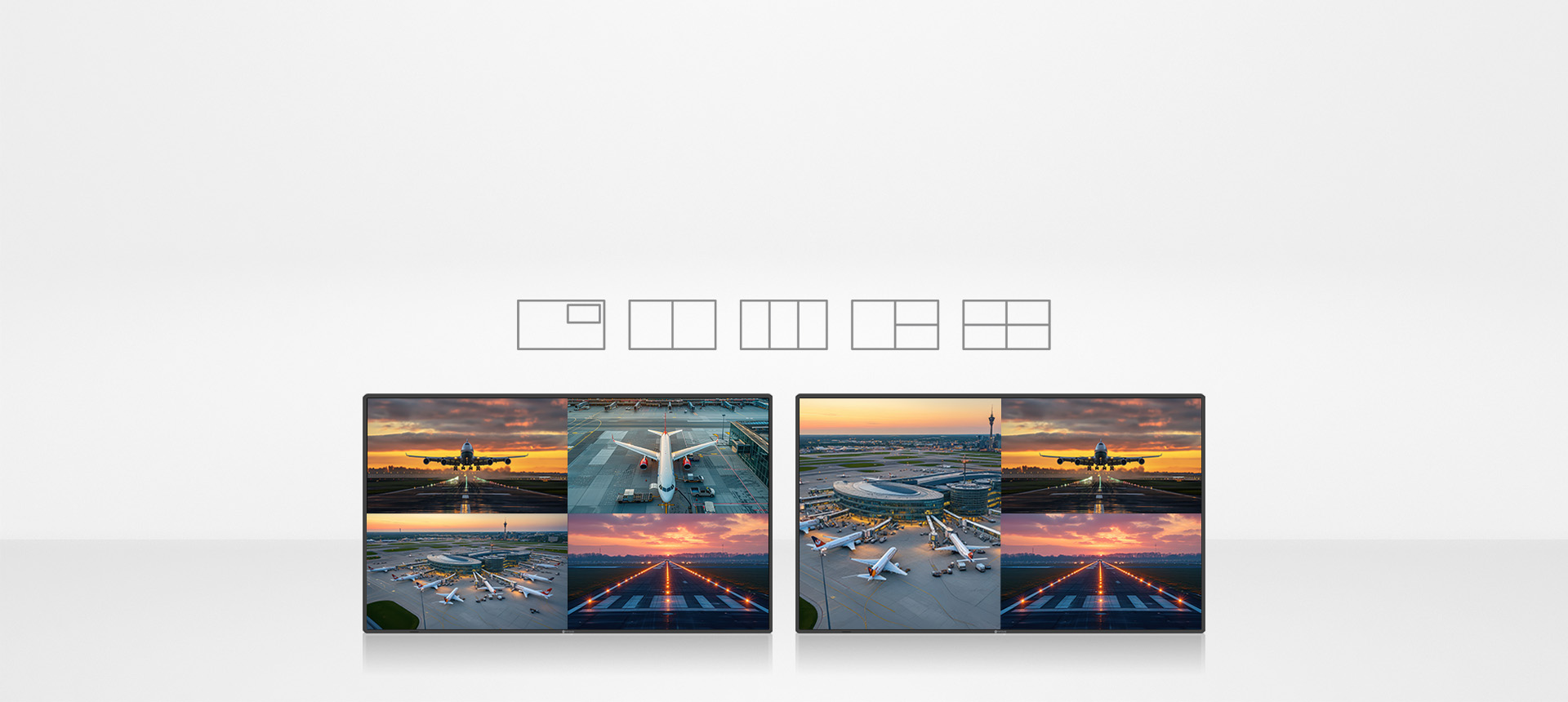

Quad-view, PIP, and PBP Modes With Flexible Monitor Layout
Display up to four HDMI input sources simultaneously in PIP or PBP modes. Layouts can be flexibly adjusted based on source priority—whether equally split, picture-in-picture, or full-screen with auxiliary feeds—allowing operators to keep the most critical information in clear view at all times.

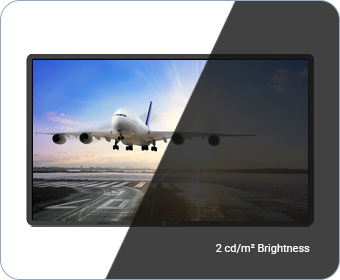

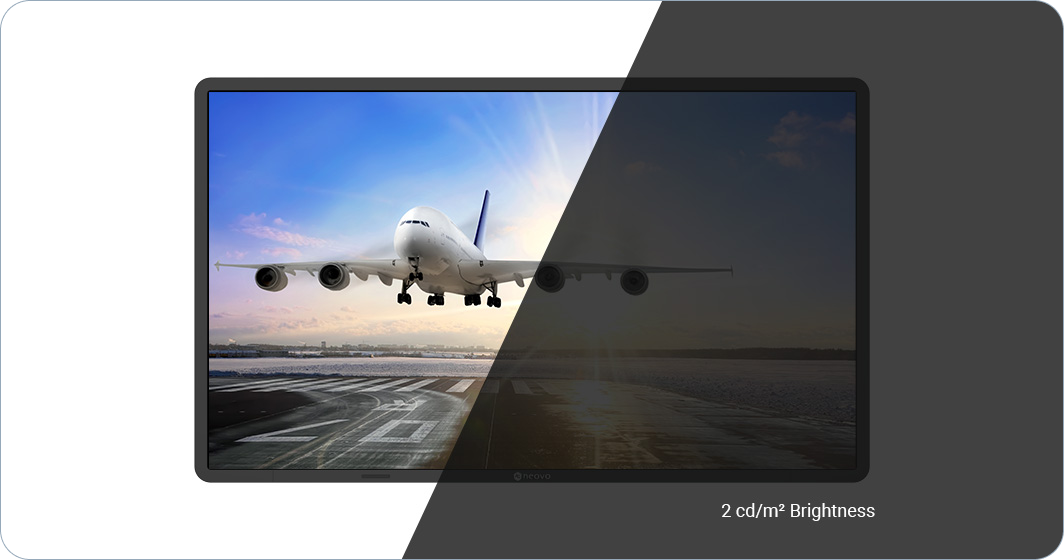

Optimised for Dark or Sensitive Environments
Adjust brightness down to 2 cd/m² —far below the 50–100 cd/m² limit of conventional displays. This enables comfortable, glare-free visibility in dark control rooms. When full discretion is needed, Blackout Mode instantly blanks the screen while keeping systems active and ready.

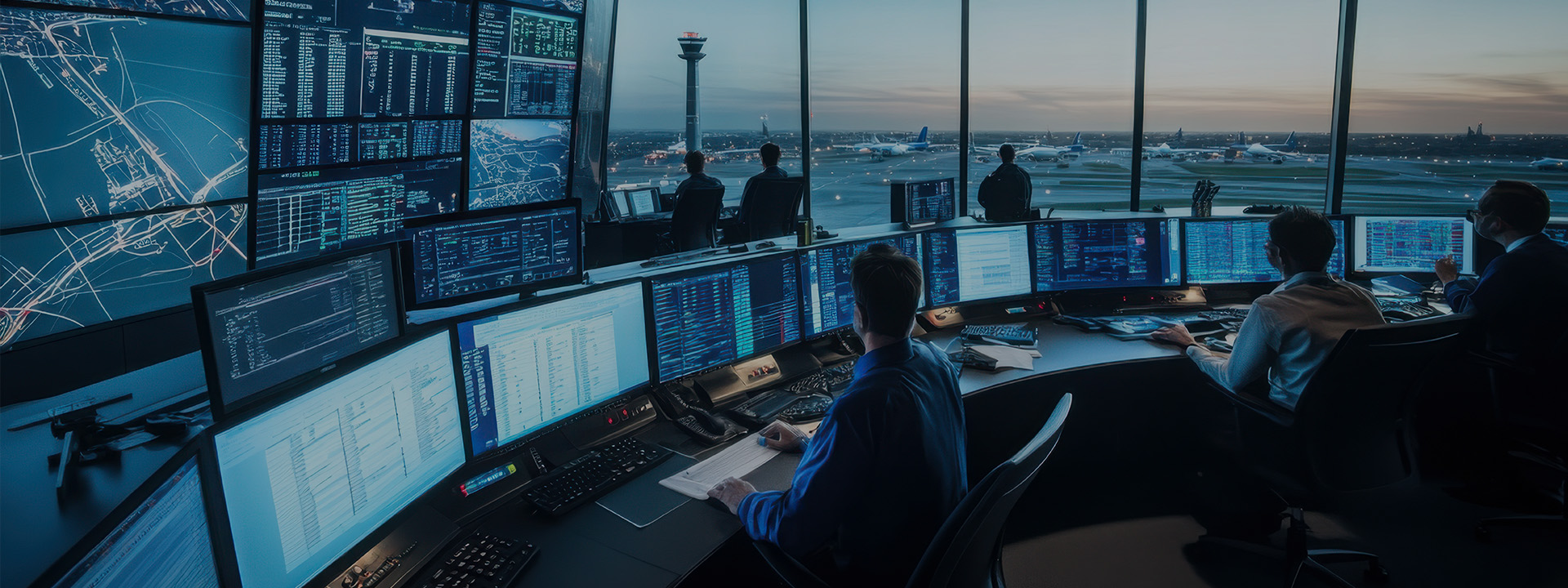

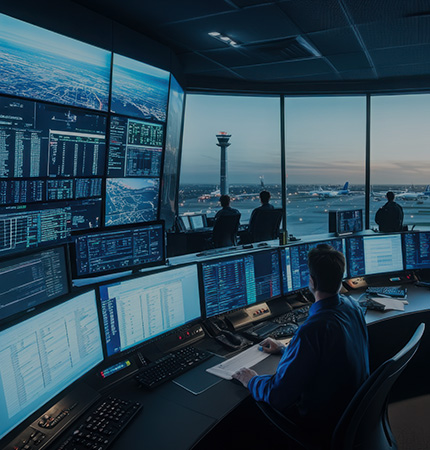

Unified Installation and Control

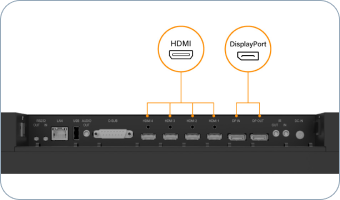

Streamlined Multi-System Integration

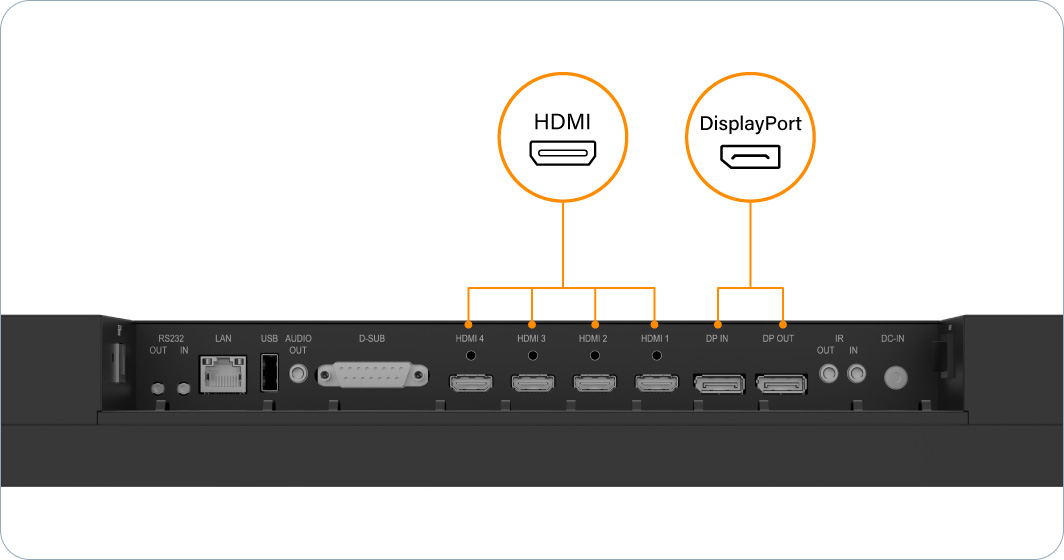

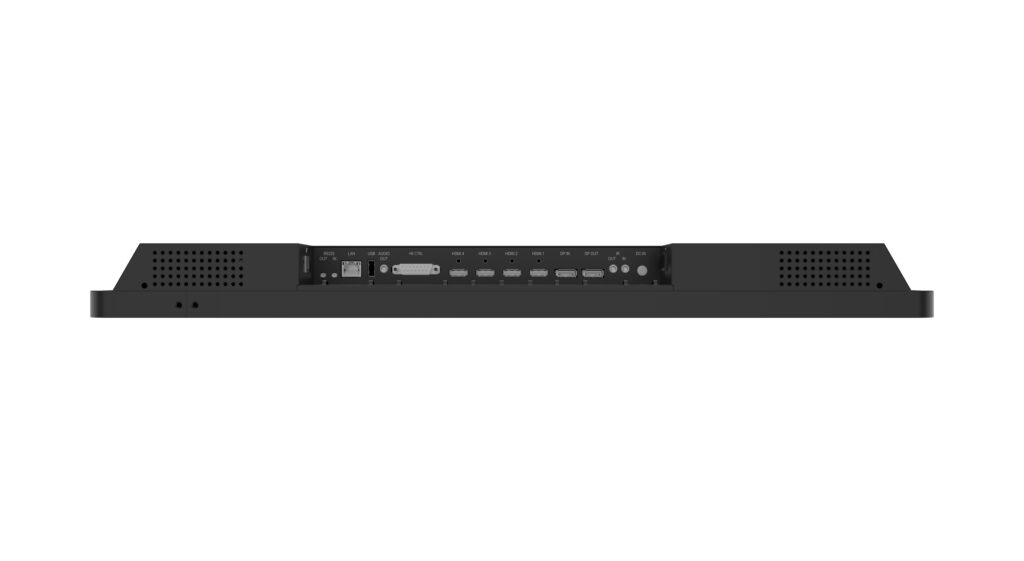

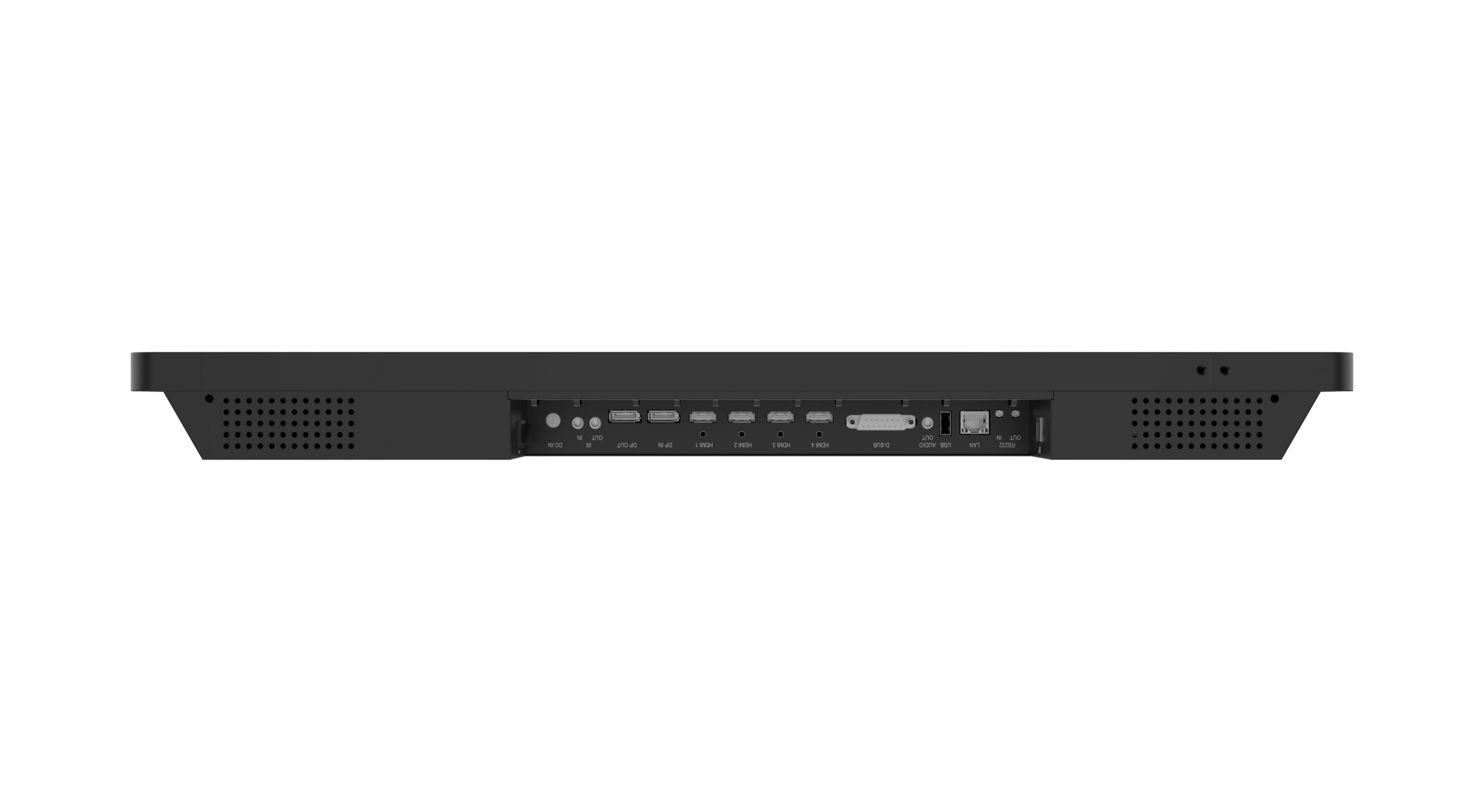

With four native HDMI and DisplayPort inputs, the QX Series eliminates the need for external matrix switchers or complex cabling. Connect up to four systems directly and manage them through built-in quad-view or PIP/PBP modes—saving installation time and reducing failure points.
Scalable Expansion and Centralised Control

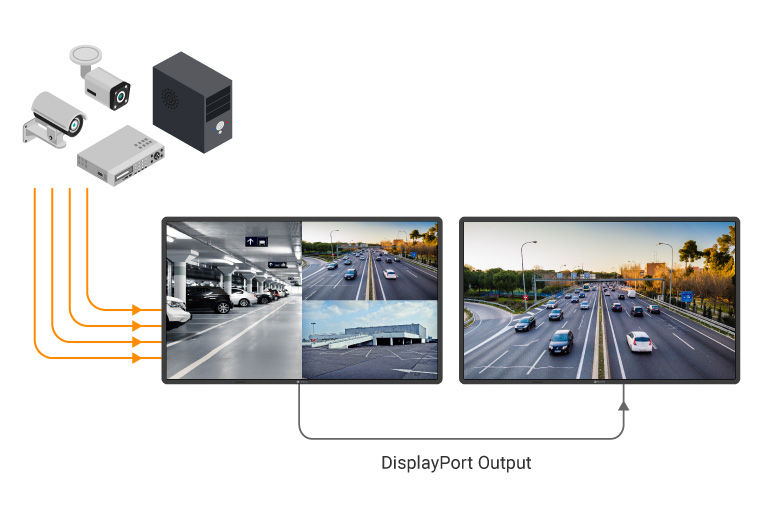

DisplayPort Daisy-Chain
The DisplayPort daisy-chain function allows one QX display to share its active on-screen sources with the following unit, enabling scalable visual configurations with minimal cabling.

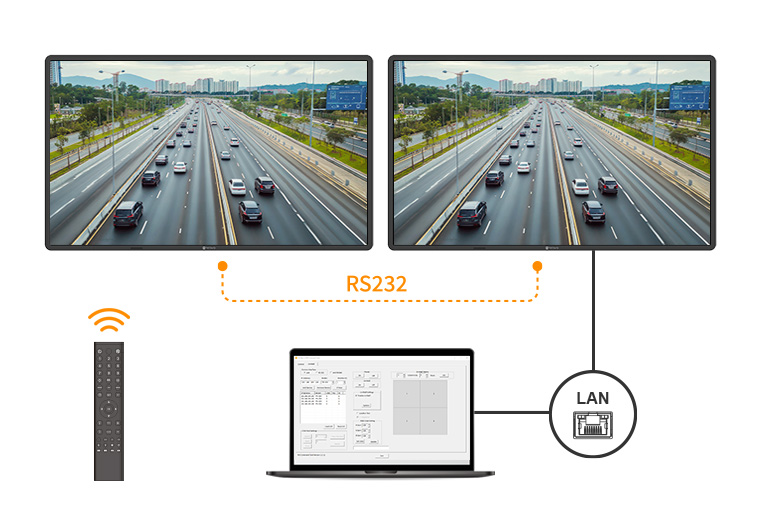

RS232/LAN Control
Synchronised control of multiple devices for unified backlight, input, or power management through RS232 loop-through. Also added flexibility with LAN input for remote configuration and adjustments over IP.

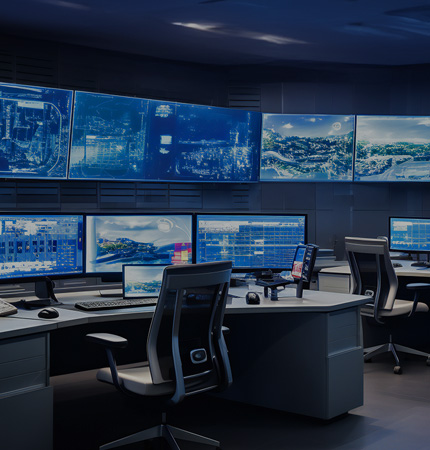

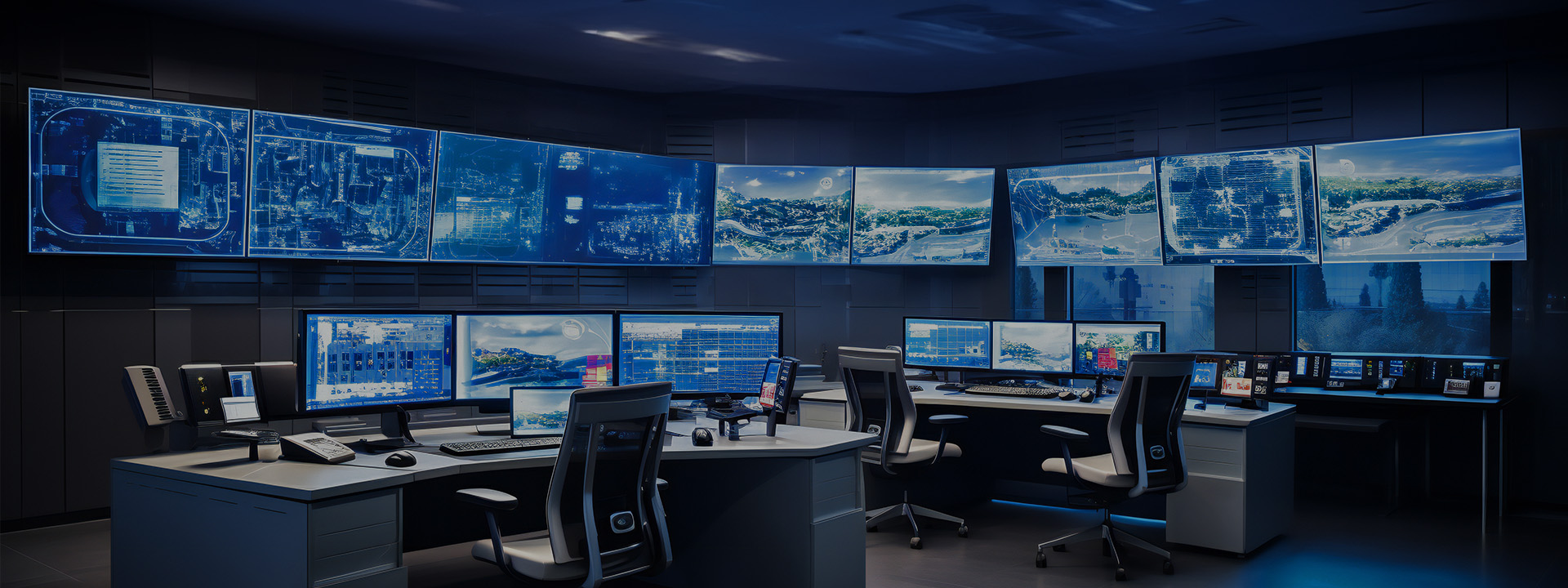

Simplified Custom Control

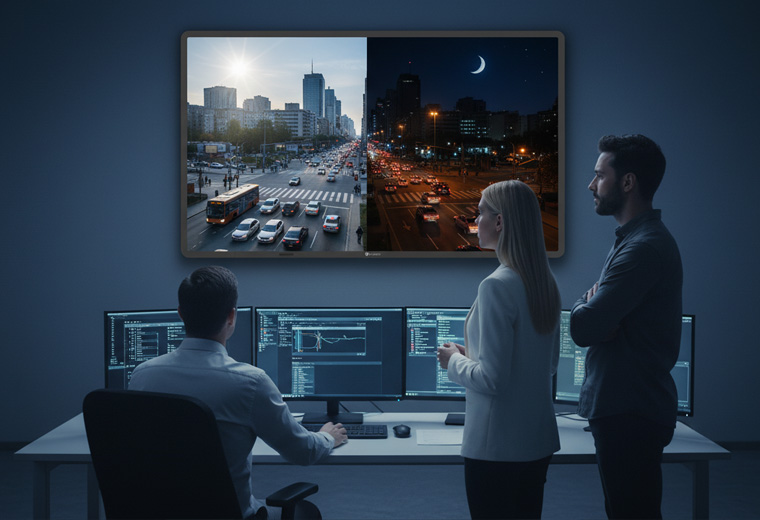

Personalised Display Settings
Save and recall up to five customised configurations, ensuring fast adaptation to different operators, shifts, or operational scenarios.
Direct Hardware Control

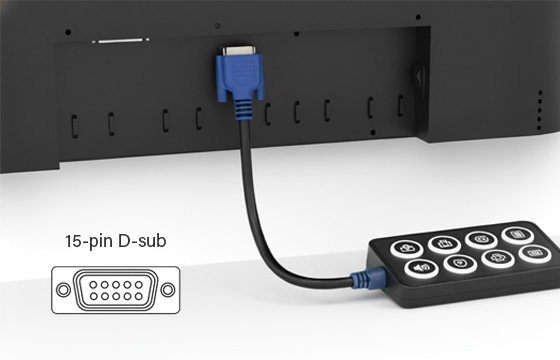

A standard 15-pin D-sub port enables connection to a pre-defined keypad for instant access to essential functions, including blackout, backlight, volume, power, input source, and screen layout.
(Image for illustration only. Keypad sold separately.)

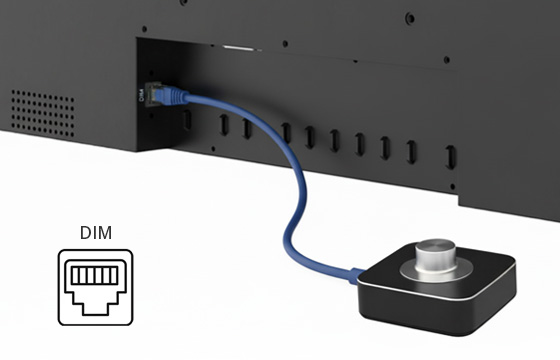

A dedicated dimming port supports an optional control knob, allowing precise and intuitive adjustment of display brightness for fast, reliable operation.
(Image for illustration only. Knob sold separately.)

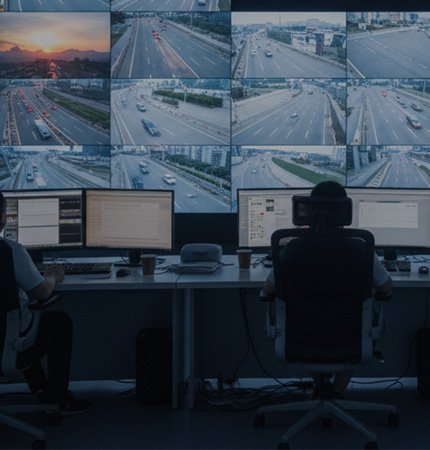

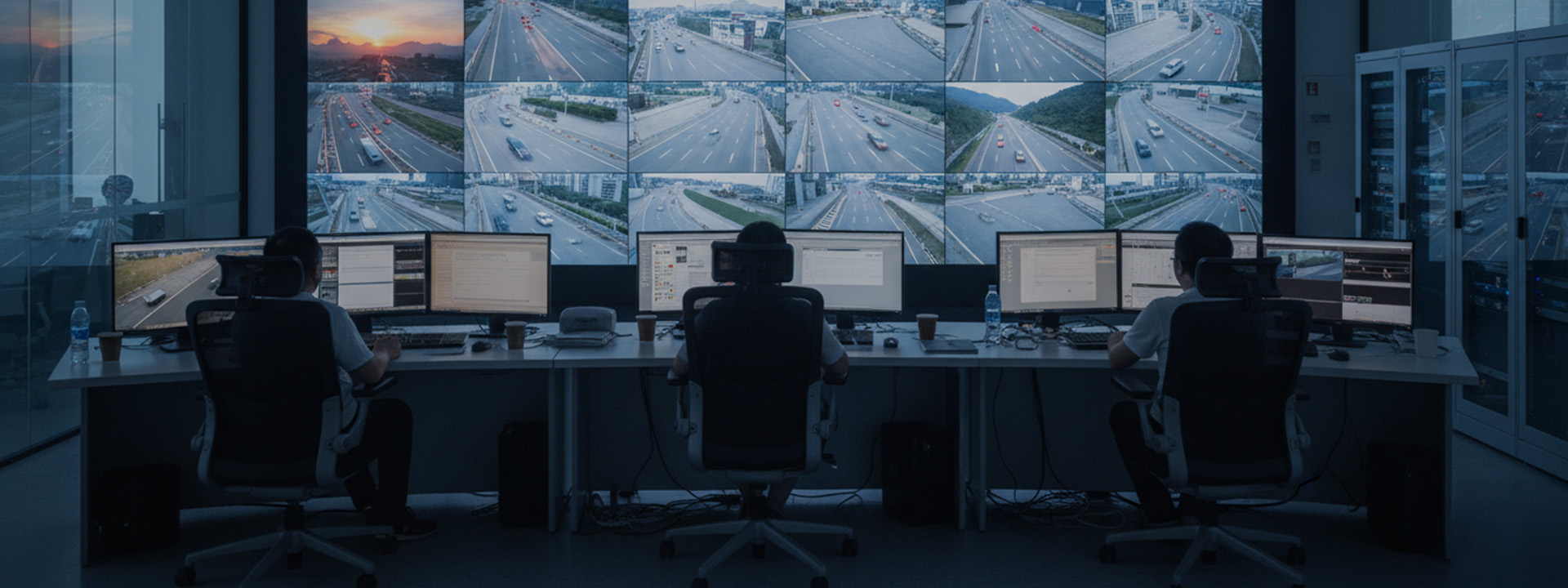

Uninterrupted Operations

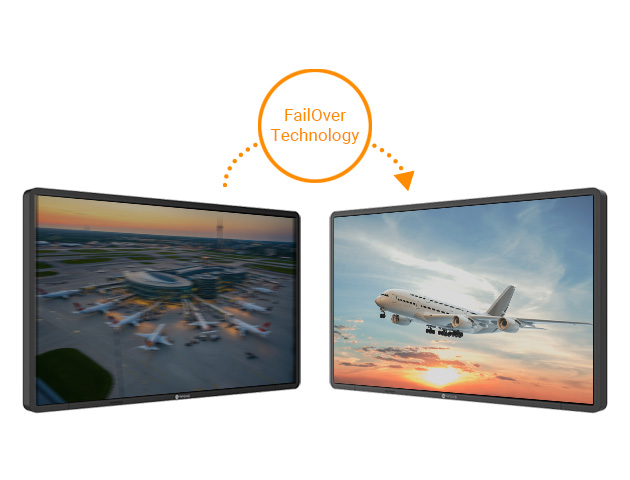

Failover Function
Automatically switches to a backup input when the primary signal fails, with input priority set by user preference or default order.

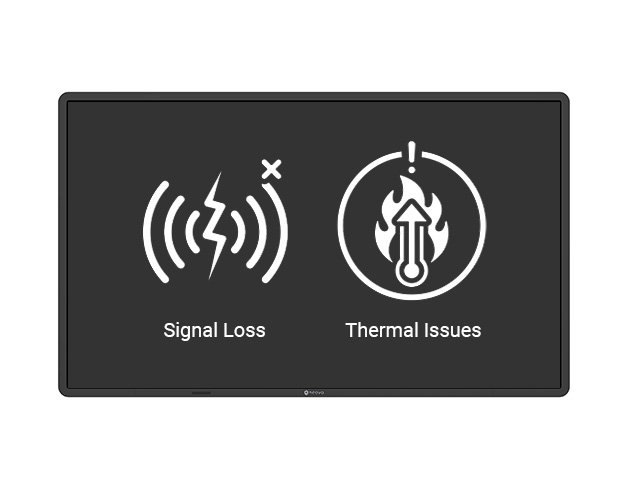

Proactive Alerts and Monitoring
RS232 feedback provides real-time notifications for signal loss and thermal issues. These alerts enable immediate response, helping reduce downtime and maintain continuous visibility. By identifying potential problems early, proactive alerts support smoother operations and more efficient maintenance in mission-critical environments.

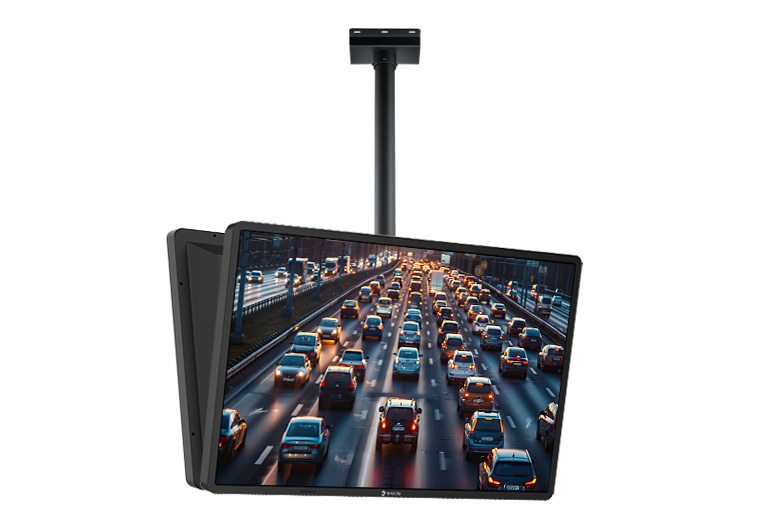

Flexible Orientation for Ceiling-Mounted Installations
Built-in image rotation ensures correct orientation when mounted upside-down, supporting ceiling-mounted setups often required in tight spaces or above operator consoles. No need for external processors or video flipping software. Suitable to use with Ceiling Mount CMP-01 + LMK-02.

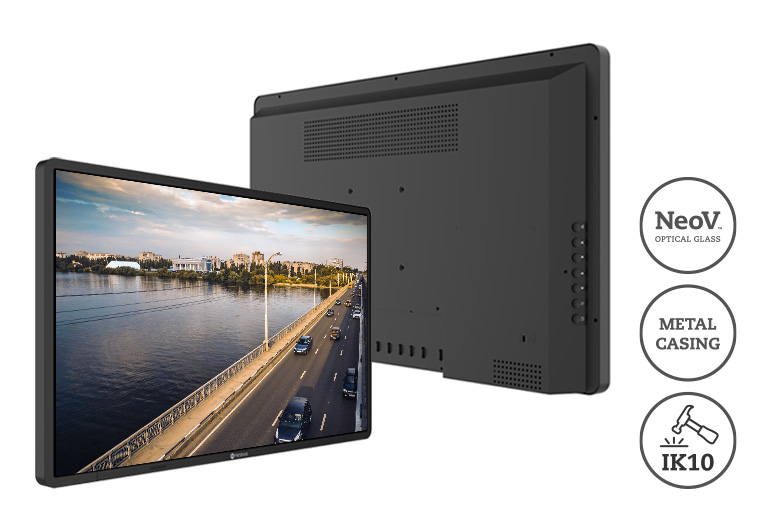

Durable Build
Built with AG Neovo’s signature NeoV™ Optical Glass with Anti-glare, AG coating and rugged metal housing, it protects against scratches and impacts.

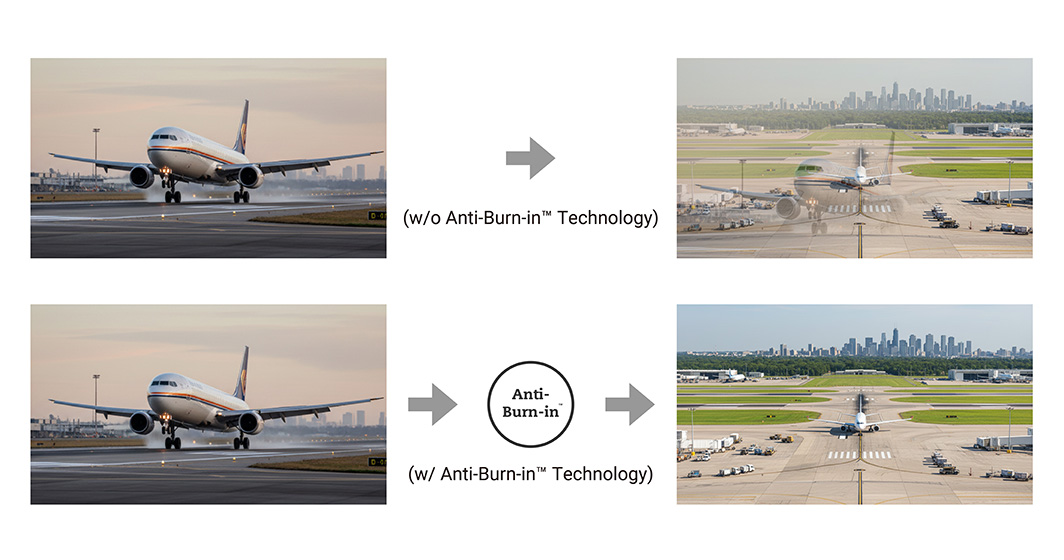

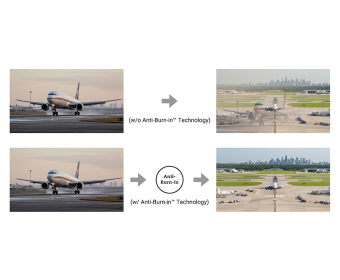

24/7 Operations with Anti-Burn-In™ Technology
AG Neovo patented Anti-Burn-in™ technology ensures stable long-term performance with static images and increases the panel’s life cycle.
