HX-24G
24-Inch 1080p SDI Monitor for Video Surveillance

  • Full HD 1920 x 1080 resolution
  • Versatile connectivity: VGA, DVI, HDMI, DisplayPort, SDI, Composite (BNC) inputs
  • Supports multiple SDI formats: 3G / HD / SD-SDI
  • SDI and Composite (BNC) loop-through output ports

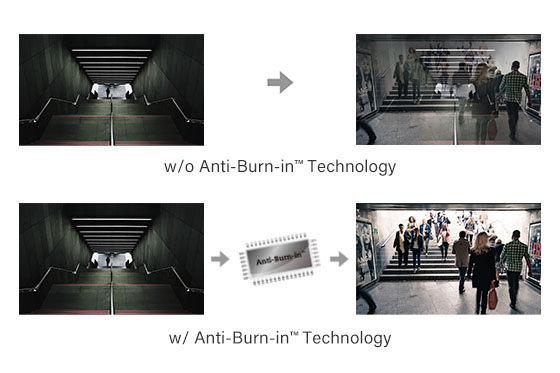

  • Anti-Burn-in technology prevents image ghosting

Request Quote
Share

The HX-24G is a 24-inch SDI monitor to broadcast live video footage over a long distance in a surveillance environment. With SDI input and output looping functionality, the monitor allows to receive real-time 1080p images from HD-SDI or 3G-SDI cameras and transmit the uncompressed videos in the light of ultra-low latency and signal interruption to multiple SDI monitors. The HX-24G fulfils the need for high-quality image details to real-time video surveillance monitoring such as official authorities, law enforcement, banks, casinos, jewellery and luxury stores, police patrol cars, private properties.

Support HD-SDI and 3G-SDI Standards

The HX-24G 24-inch SDI monitor supports both HD-SDI and 3G-SDI standards at Full HD image quality. Users don’t need to sacrifice the video quality and image details when zooming in the cameras during live video and playback mode to focus on their specific area of interest.

HX-24G SDI monitor with BNC connectivity supports HD-SDI and 3G-SDI standards at Full HD image quality

Uncompressed and Ultra-low Latency Transmission via Long Distance

The HX-24G supports multiple SDI video standards, including SD, HD and 3G-SDI formats. These standards support ultra-low latency and uncompressed transmission of HDTV signals up to 300 meters for live video monitoring.

The maximum distances for SD-SDI, HD-SDI and 3G-SDI signal transmission via RG6 cables:
3G-SDI: 100M / RG6 Coaxial Cables
HD-SDI: 150M / RG6 Coaxial Cables
SD-SDI: 300M / RG6 Coaxial Cables

Note: Please ensure your installation requirements first.

AG Neovo HX-24G SDI monitors support multiple SDI video standards

Easy Connection with SDI Loop Out for Multiple Monitor Setups

With HX-24G’s SDI loop-out port, CCTV installers can quickly connect the SDI A/V source to extra SDI monitors without the need for a converter. It’s an ideal solution for CCTV HD-SDI camera and broadcast monitoring.

HX-24G SDI monitor provides uncompressed and ultra-low latency transmission with HD-SDI inputs and outputs
