24-inch 1080p Touch Screen Monitor with White Casing
TX-2401 White

• FHD 1920 x 1080 resolutions
• 10-point projected capacitive touch technology
• Versatile connectivity: VGA, HDMI, DisplayPort signal inputs
• Medical adapter certified to the IEC/EN 60601-1 medical design
• Windows 10 ready – plug and play support for Windows 7/8/10
• Designed and developed for continuous 24/7 operation

TX-2401 White Product Icons

The TX-2401 White touch screen monitor adopts PCAP multi-touch technology that is relatively unaffected by surface contaminants and allows 10-point multi-touch capabilities, offering an accurate and responsive touch experience. It is even responsive to latex gloves. Featuring a medical-grade power supply and versatile connectivity (e.g., DisplayPort, HDMI, and VGA inputs), the TX-2401 White is built for flexible use, such as patient check-in, patient queue management, medical research laboratories, or medical computer carts. The monitor is complemented by front IP65 and IK08 ratings, white metal casing, and an edge-to-edge 7H tempered glass overlay, ensuring durability and easy cleaning for continuous operation in healthcare environments.

10-Point PCAP Touch Screen

The TX-2401 White touch screen adopts PCAP touch technology with 10-point multi-touch capabilities that are unaffected by contamination, offering a fast, accurate, and responsive touch experience. The seamless touch experience is identical to that of smartphones and tablets, and is even responsive to latex gloves.

TX-2401 White 10-point PCAP Touch Screen

Enhanced Safety with Medical-grade Power Supply

Compliance with the IEC / EN 60601-1 standard power supply ensures the safety of your staff and patients in clinical settings, preventing electric shocks, as well as energy-related and heat-related hazards.

TX-2401 White Enhanced safety with medical-grade power supply

Easy to Maintain for Non-Stop Use

A commercial-grade panel, high-quality components, and a 7H scratch-resistant tempered glass screen ensure that the display can be used 24/7. The touch screen is cleanable with alcohol, allowing for frequent cleaning to keep your staff and patients in a safe and healthy environment.

TX-2401 White is Easy to Maintain for Non-Stop Use

Front IP65 Dust and Water Protection

The TX-2401 White multi-touch monitor with a front-sided IP65 rating is designed to protect from dust and liquid spills, making it ideal for high-use public locations.

TX-2401 White Front IP65 Dust and Water Protection for Healthcare Environments

Impact-Resistant Against Vandalism

The touch display with an IK08 rating and metal casing prevents damage from impacts or acts of vandalism in high-traffic areas, ensuring a long service life.

TX-2401 White High Impact-resistant against Vandalism

Multiple Layouts for Public Access

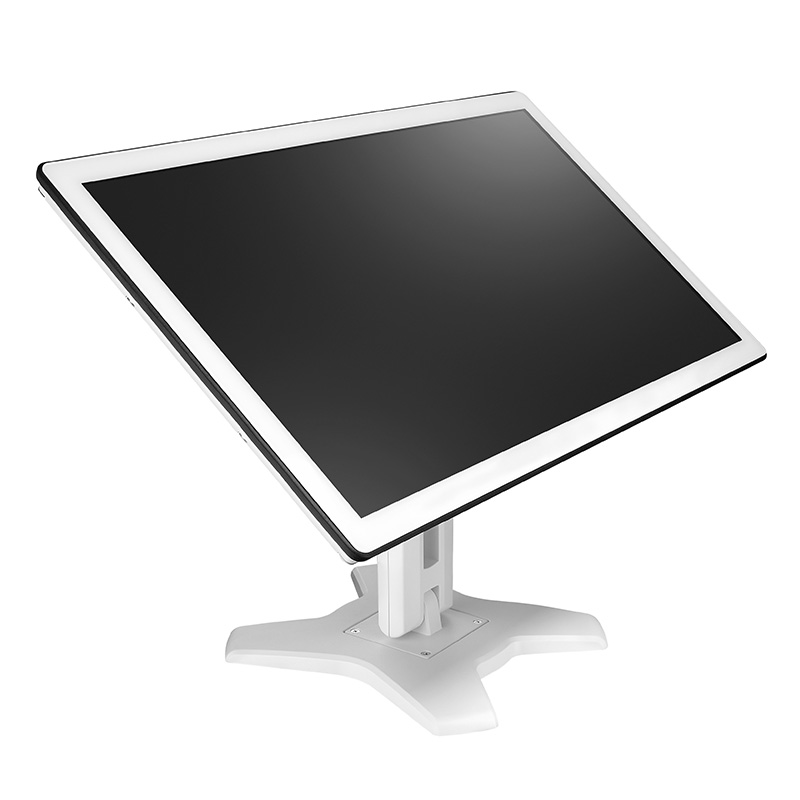

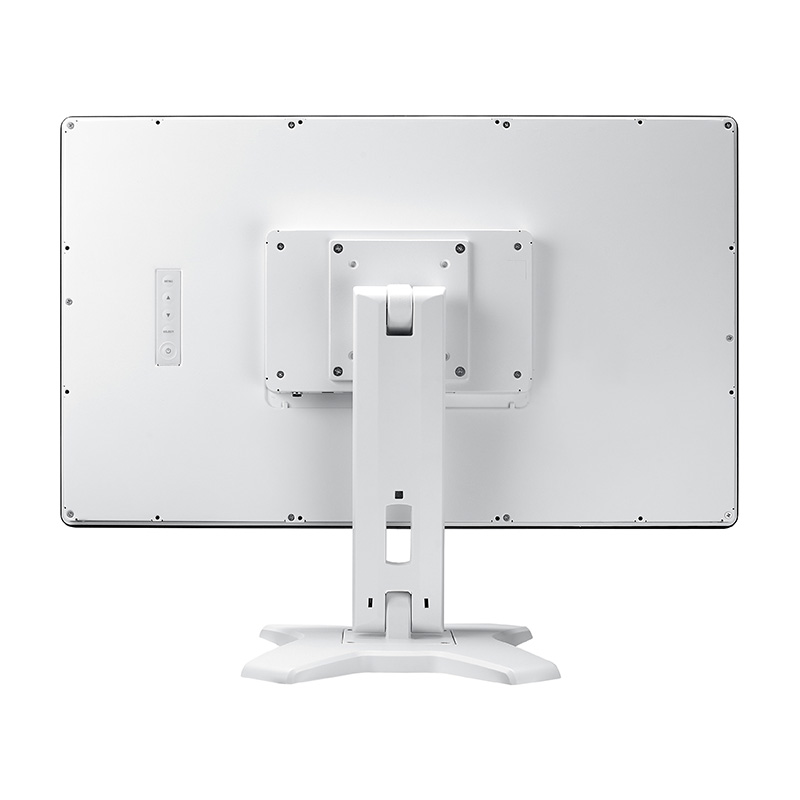

Thanks to VESA compatibility, the TX-2401 White offers flexible mounting options, such as desk mounting, attaching to a monitor arm, or integrating into a medical cart. The included ergonomic stand allows for a significant -2 to 180 degrees of tilt adjustment, facilitating additional flexibility when using. The display features 178 degrees of wide viewing angles to provide consistent colour performance for better viewing.

TX-2401 White Multiple Layouts for Public Access

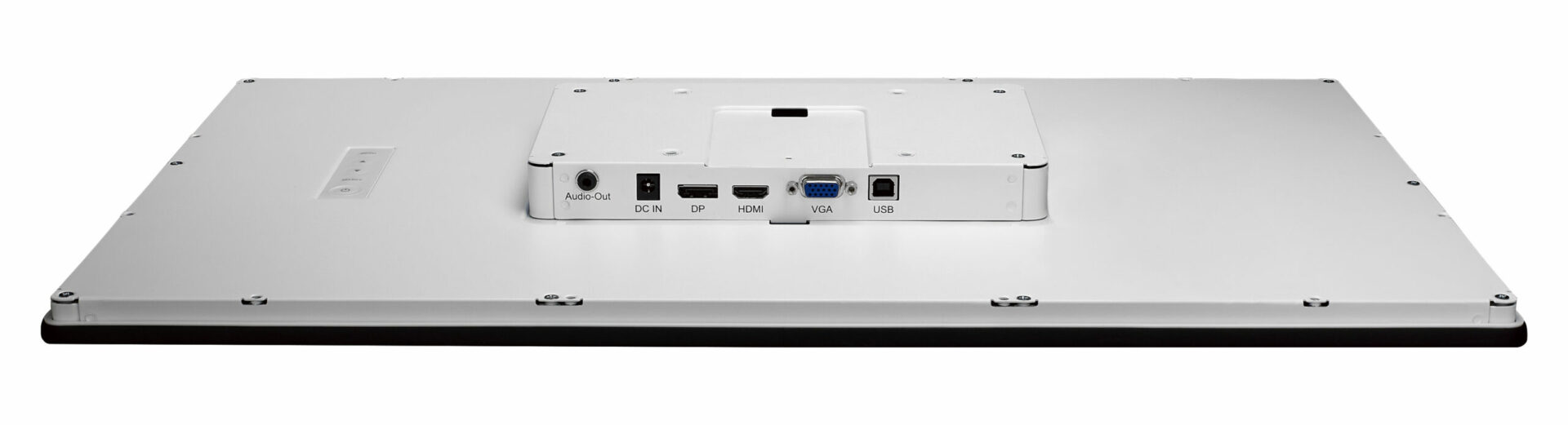

Versatile Connectivity

The TX-2401 White provides maximum versatility and enables users to connect to their own devices, such as a high-performance PC or media player, using the DisplayPort, HDMI, or VGA inputs.

TX-2401 White Versatile Connectivity

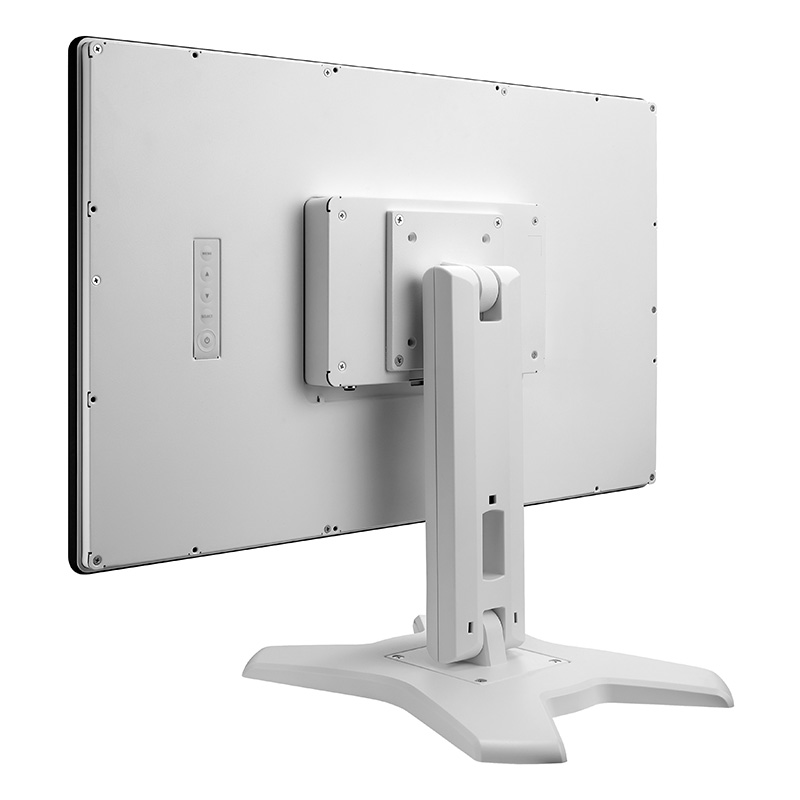

Cable Management

A specially designed monitor stand with integrated cable management keeps cables organized, prevents them from interfering when adjusting the screen, and provides a clutter-free space.

TX-2401 cable management

Seamless integration

Touch support works with various operating systems, compatible with Windows, Linux, macOS, and certain Android versions. This enables more choice of the operating system you use.

TX-2401 White Seamless integration
AG Neovo Medical Displays are designed and manufactured for the use in Healthcare, Medical and Clinical environment, but are not “medical devices” or ISO 13485 compliant. Professional Integration within medical environment might require specific knowledge, skills and certificates and is anytime due to the integrator’s liability.
