Products

    55-Inch 1080p 700 Nits Ultra Narrow Bezel Video Wall Display
    PN-55H (PN5HC0)

    • Full HD 1920 x 1080 resolution
    • 3.5 mm ultra-narrow bezel for seamless LCD video walls
    • 700 nits high brightness for semi-outdoor installation
    • Anti-Burn-in technology prevents image ghosting
    • Versatile connectivity: DisplayPort, HDMI, DVI, VGA, Composite, Component
    PN-55H product icon

    The PN-55H ultra-narrow bezel video wall displays are designed for professional video wall applications. Given the built-in scheduler, OPS slot, and UniWall™ function, these premium displays are easy to set up and maintain up to 10×10 display configuration. With its Full HD 1080p resolution, 700nits high brightness, and premium-grade panel, visually stunning video walls can display in demanding environments — from large public venues to 24/7 operation control rooms.

    Professional Video Walls

    55-inch ultra-narrow bezel 3.5mm professional video wall display creates seamless images for an uninterrupted visual experience. For a complete video wall set up, up to 10×10 tiling is supported via DisplayPort and DVI interfaces.

    The PN-55D/55H ultra narrow bezel video wall display is 3.5 mm bezel to bezel width

    IPS Panel for 24/7 Use

    Designed for 24/7 operation, PN-55H high brightness video wall display is produced to meet the highest standard of IPS panel technology and take advantage of superior components to ensure a long product lifetime in demanding environments.

    PN-Series narrow bezel video wall display is made of commercial panel for 24/7 operation

    Patented Anti-Burn-in™ Technology

    To combat the effects of traditional LCD burn-in or ghosting, AG Neovo utilises its patented Anti-Burn-in Technology to prevent image burn-in and assure the extended life span for displays.

    Comparison between video wall panels with and without AG Neovo Anti-burn-in technology

    Colour Calibration for Video Wall Setup

    Screen colour varies due to temperature changes or after long-term use. Fortunately, AG Neovo offers a colour calibration tool, which detects each area using on-screen sensors and automatically fine-tunes colours and details for large-scale display installations.



    * This requires consultation with an AG Neovo sales representative.

    Comparison between before and after colour adjustment of PN-Series video wall displays

    Built-in HeatControl Sensors

    The built-in HeatControl Sensors automatically activate the internal cooling fans when the temperature rises.

    PN-Series video wall display has a built-in HeatControl sensor

    Embedded Image Enhancer

    The embedded image enhancer features a 3D Comb Filter, 3D Deinterlace, and Noise Reduction to solve image issues – offer crystal clarity to the most demanding environments.

    AG Neovo's PN-Series narrow bezel video wall display has embedded image enhancer

    Integrated Content Scheduler

    The built-in integrated scheduler in the OSD menu allows you to easily broadcast content based on source, time, and day by IR remote control.

    AG Neovo's PN-Series video wall display has a content scheduling setting

    Versatile Connectivity for Multimedia Playback

    The PN-55H integrates diverse connectivity, including HDMI, DisplayPort, DVI, VGA, and an OPS slot to connect external devices. In addition, the displays support USB playback functionality and users can directly playback multimedia content without the need of a PC.

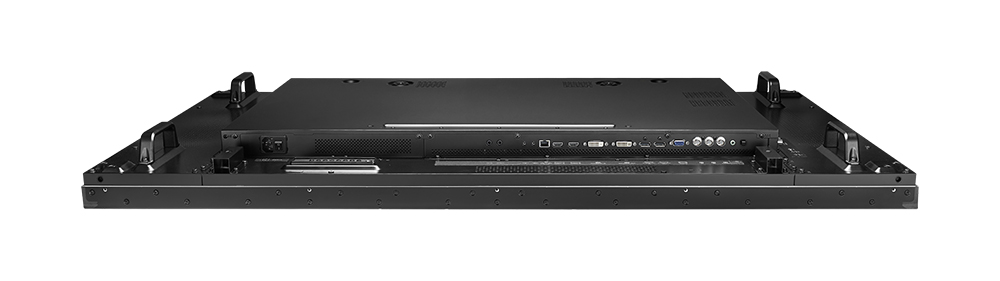

    The PN-Series video wall display has versatile I/O ports and embedded OPS slot

    Document

    Data Sheet
    PN-55H Datasheet V4.3
    Upload date: 2021-10-21
    User Manual
    PN-55H User Manual V1.2 English
    Upload date: 2021-10-21
    Product Photo
    PN-55H Product Photos
    Upload date: 2021-10-21
    Declaration
    PN-55H CE Declaration
    Upload date: 2021-10-21
    Command List
    PN-55H RS232 Command List
    Upload date: 2021-10-21
    Technical Drawing
    PN-55H Technical Drawing V1.04 - PN5HB0 PN5HC0
    Upload date: 2021-10-21
    Certification
    PN-55H BSMI Certificate
    Upload date: 2021-10-21
    PN-55H CE Certificate
    Upload date: 2021-10-21
    PN-55H CB Certificate
    Upload date: 2021-10-21
    PN-55H FCC Certificate
    Upload date: 2021-10-21
