PN-55D2 55-Inch 1080p 500 nits Ultra Narrow Bezel Video Wall Display

  • Full HD 1920 x 1080 resolution
  • 3.5 mm narrow bezel width for professional LCD video walls
  • 500 nits brightness panel offers clear images in bright areas
  • DVI and DisplayPort daisy-chain support for easy video wall installation
  • Anti-Burn-in technology prevents image ghosting
PN-55D2 product icon

The PN-55D2 55-inch ultra narrow bezel video wall display features 3.5mm bezel-to-bezel width for seamless video wall applications. Given its built-in scheduler, OPS slot, and UniWall function, these premium displays are easy to set up and maintain. With 500 nits high brightness and premium-grade panels, visually stunning video walls can display in demanding environments — from large public venues to 24/7 operation control rooms.

Immersive Visual Experience

55-inch ultra-narrow 3.5 mm bezel-to-bezel professional video wall display creates seamless images for an immersive visual experience, while the flexible landscape or portrait display orientation suits favorable content layouts and fulfills different applications.

AG Neovo PN-55D2 ultra narrow bezel video wall display is 3.5 mm bezel-to-bezel width

IPS Panel for 24/7 Use

Designed for 24/7 operation, AG Neovo PN-55D2 video wall display is produced to meet the highest standard of IPS panel technology and take advantage of superior components to ensure a long product lifetime in demanding environments.

PN-Series narrow bezel video wall display is made of commercial panel for 24/7 operation

Anti-glare Coating with High Visibility

Anti-glare treatment with haze 28%, high contrast, wide viewing angles, and 500 nits brightness allow viewers to see images with superior clarity and visibility under ambient light.

AG Neovo PN-55D2 video wall display panel features 500 nits brightness and special anti-glare coating

Patented Anti-Burn-in™ Technology

To combat the effects of traditional LCD burn-in or ghosting, AG Neovo utilises its patented Anti-Burn-in Technology to prevent image burn-in and assure the extended life span for displays.

Comparison between video wall panels with and without AG Neovo Anti-burn-in technology

Colour Calibration for Video Wall Setup

Screen colour varies when temperature changes or after long-term use. AG Neovo offers the colour calibration tool which detects each area by the sensors on the screens and automatically fine-tune the colour in depth and details for large-scale display installations.


*This requires consultation with AG Neovo sales representative.

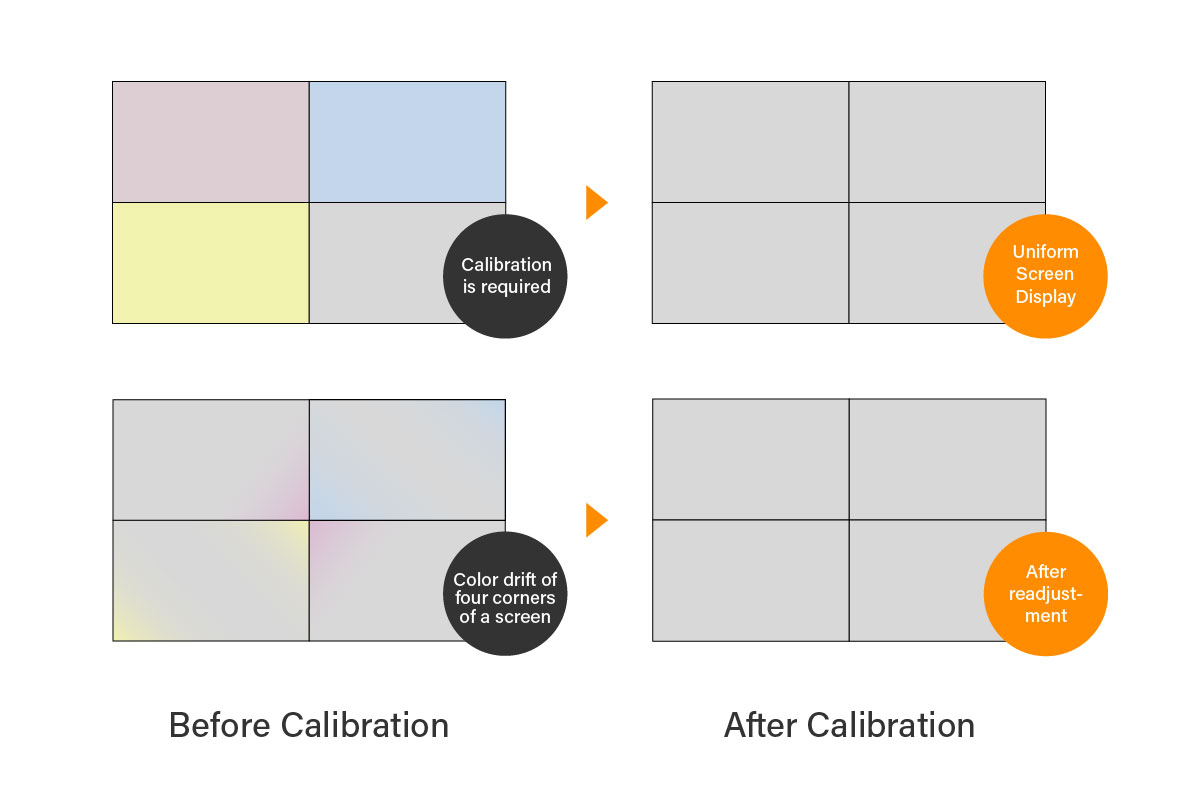

Comparison between before and after colour adjustment of PN-Series video wall displays

DisplayPort Daisy-chain for 4K Video Wall Installation

With DisplayPort daisy chain functionality, the video and audio can be delivered to multiple AG Neovo’s large format displays using DisplayPort cables to set up, configure and maintain 2×2 4K video wall installations with ease.

The PN-55D2 features DP daisy-chain looping for 2x2 4K video wall installation

Built-in HeatControl Sensors

The built-in HeatControl Sensors automatically activate the internal cooling fans when the temperature rises.

PN-Series video wall display has a built-in HeatControl sensor

Embedded Image Enhancer

The embedded image enhancer features a 3D Comb Filter, 3D Deinterlace, Noise Reduction, and Freeze to solve image issues – offer crystal clarity to the most demanding environments.

AG Neovo's PN-Series narrow bezel video wall display has embedded image enhancer

Integrated Content Scheduler

The built-in integrated scheduler in the OSD menu allows you to easily broadcast content based on source, time, and day by IR remote control.

AG Neovo's PN-Series video wall display has a content scheduling setting

Versatile Connectivity for Multimedia Playback

The PN-55D2 55-inch ultra narrow bezel video wall display integrates diverse connectivity, including HDMI, DisplayPort, DVI, VGA, and an OPS slot to connect external devices. In addition, the displays support USB playback functionality and users can directly playback multimedia content without the need of a PC.

The PN-Series video wall display has versatile I/O ports and embedded OPS slot

PID Command & Ctrl Software

PID Command & Ctrl provides intuitive user interfaces for remote management via laptops and mobile devices and offers easy creation on video wall displays. The software also has simple colour calibration, temperature check, IR/key locking options, and time on usage monitoring for daily maintenance.

The Windows and app versions from PID command & control software UI


Data Sheet
PN-55D2 Datasheet V1.3
Upload date: 2022-02-07
User Manual
PN-55D2 User Manual V1.0 English
Upload date: 2022-02-17
PN-55D2 User Manual V1.0 French
Upload date: 2022-02-17
PN-55D2 User Manual V1.0 German
Upload date: 2022-02-17
PN-55D2 User Manual V1.0 Spanish
Upload date: 2022-02-17
Product Photo
PN-55D2 Product Photos
Upload date: 2021-10-21
PN-55D2 CE Declaration
Upload date: 2021-10-21
EEI Label
PN-55D2 EEI-Label G
Upload date: 2021-10-21
Technical Drawing
PN-55D2 Technical Drawing V1.02 - PN5D20
Upload date: 2022-02-07
